Architecture

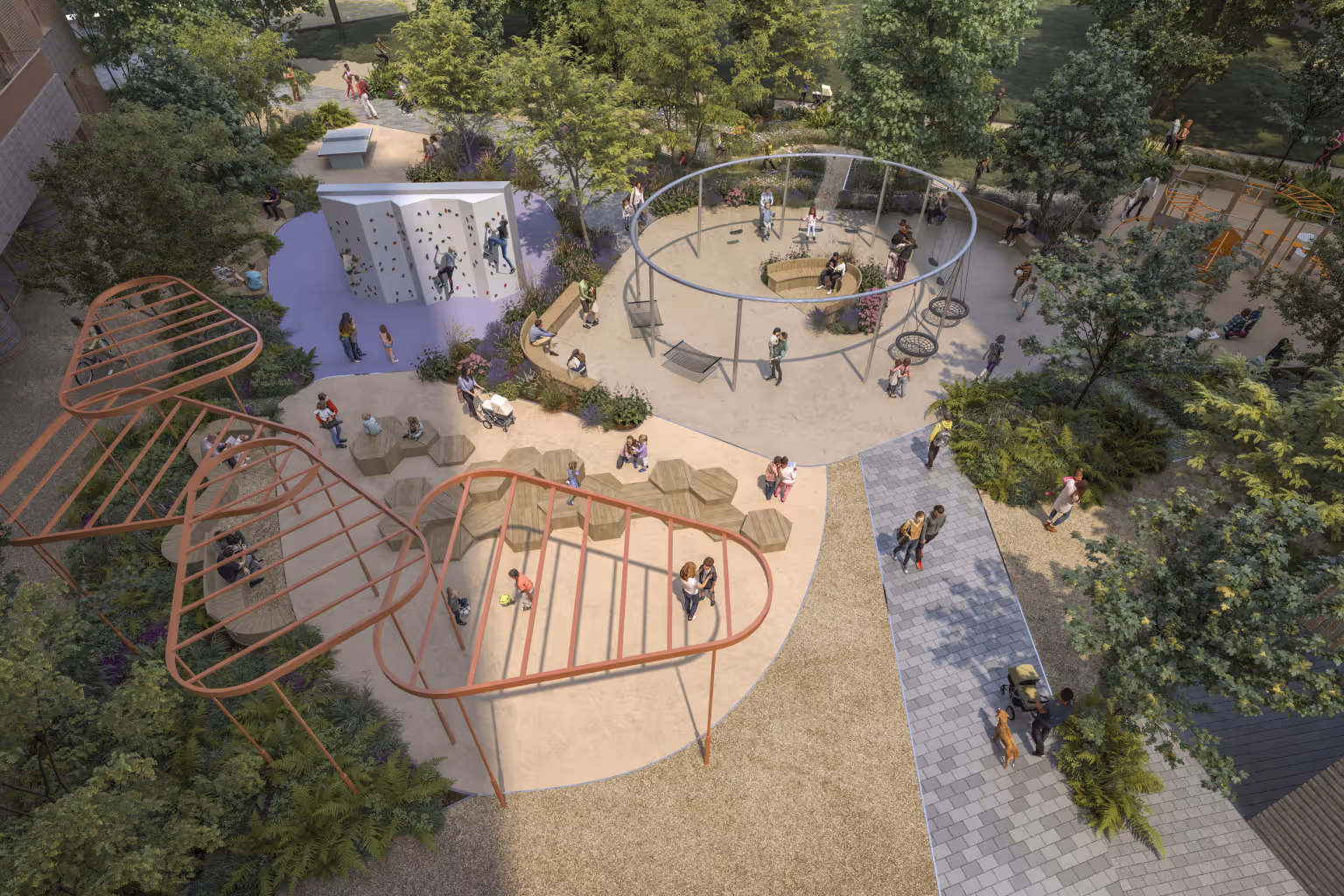

Our approach to the design of Friary Park Phase 3 prioritises architectural cohesion within the masterplan, ensuring continuity with earlier phases while delivering tangible enhancements to outdoor amenity space and community infrastructure. To maximise public realm, we revised the original block typologies to reduce building footprints, creating more generous, high-quality outdoor spaces. A key feature is the improved arrival experience from the east, conceived as a welcoming gateway integrating a new community centre, cycle hub, and inclusive play spaces open to the wider neighbourhood.

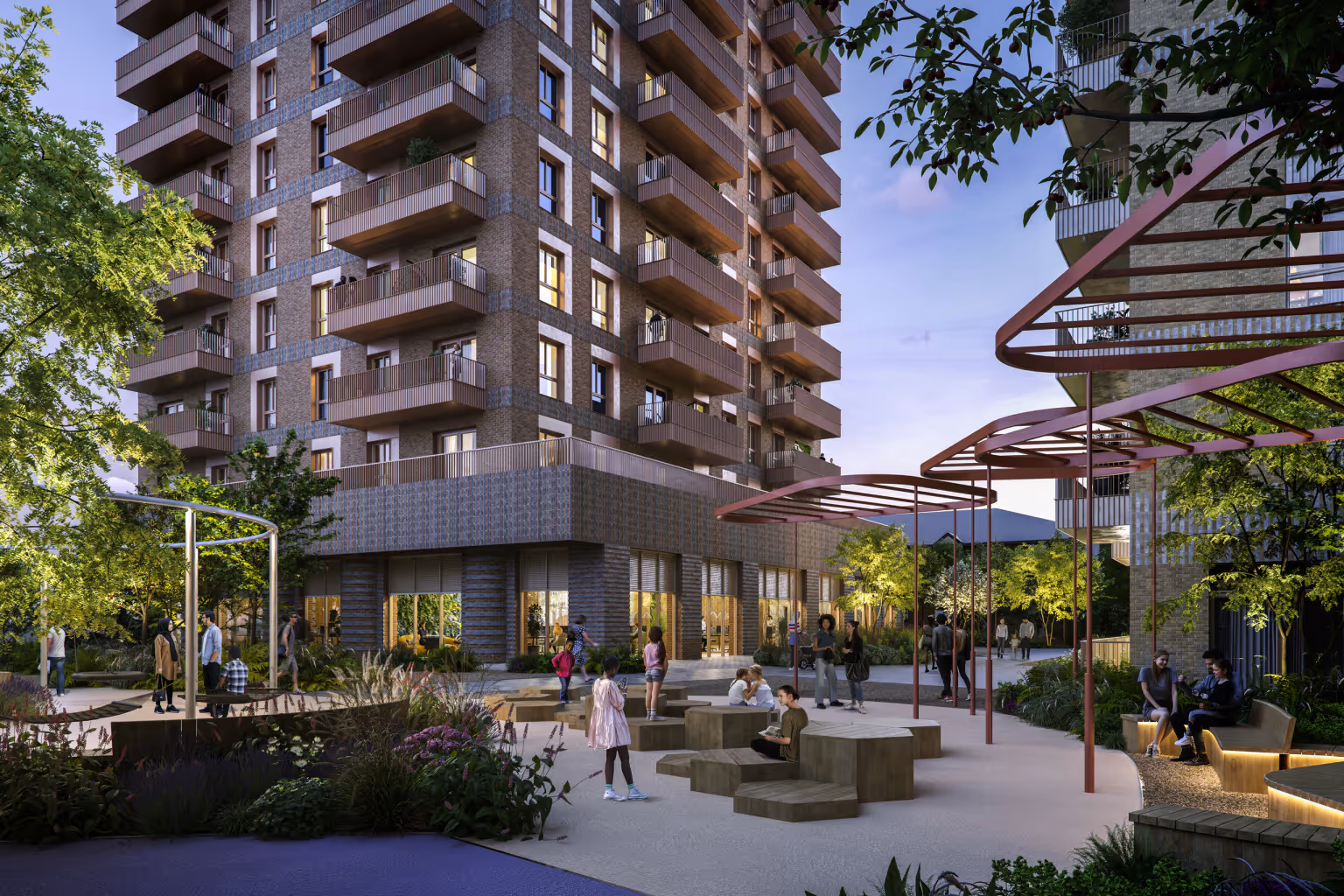

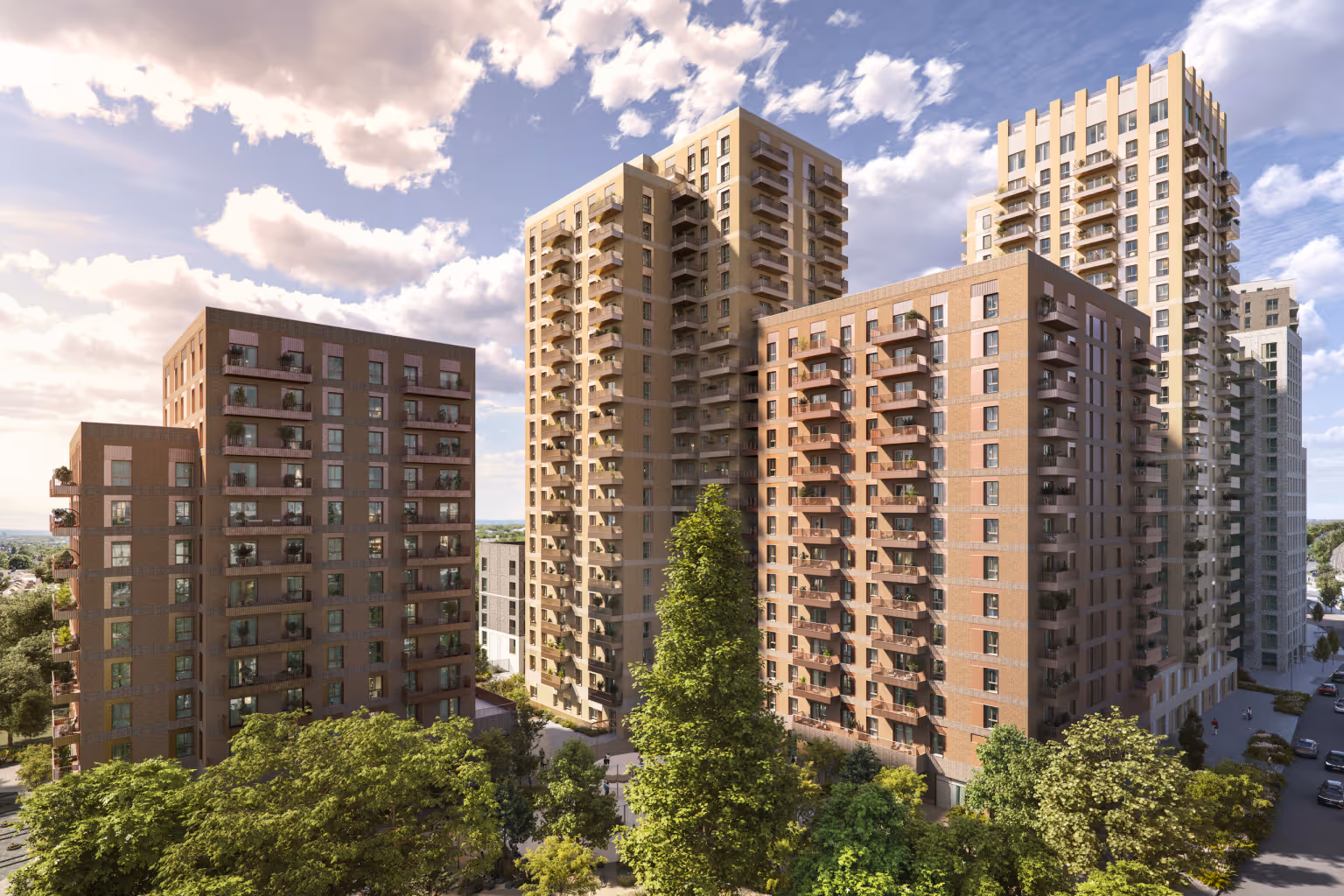

The architectural expression continues the material strategy of the wider masterplan—lighter materials on taller buildings and red brick for lower shoulder blocks—simplified in Phase 3 to create visual clarity. Two façade types are proposed: a lighter palette for taller elements to reduce visual massing, and a warmer red tone for lower elements, referencing Acton’s historic brick character. Façades are composed using two principal grids, combining two window types and two balcony forms—projected and inset—to support massing articulation and internal planning. Projected balconies emphasise the butterfly-shaped taller buildings, while inset balconies define the vertical break between shoulder and taller forms. A limited palette of brick and metal materials is used throughout, with expressive metal detailing adding richness around key openings and amenity areas.

A special focus has been placed on activating ground-floor façades, especially along the north and west elevations where plant requirements could otherwise create inactive frontages. Reflective metal cladding is introduced here to catch light and movement, enhancing the pedestrian experience. To further strengthen identity and celebrate key access points, especially the community centre, large circular brick columns are used as bold architectural features—adding rhythm, texture, and civic character to the streetscape. The community centre and play spaces were co-designed with local residents through workshops, embedding their aspirations into the final design.
